VIBRATING SHUTTLE

Shuttle Thread Enclosed by Needle Thread

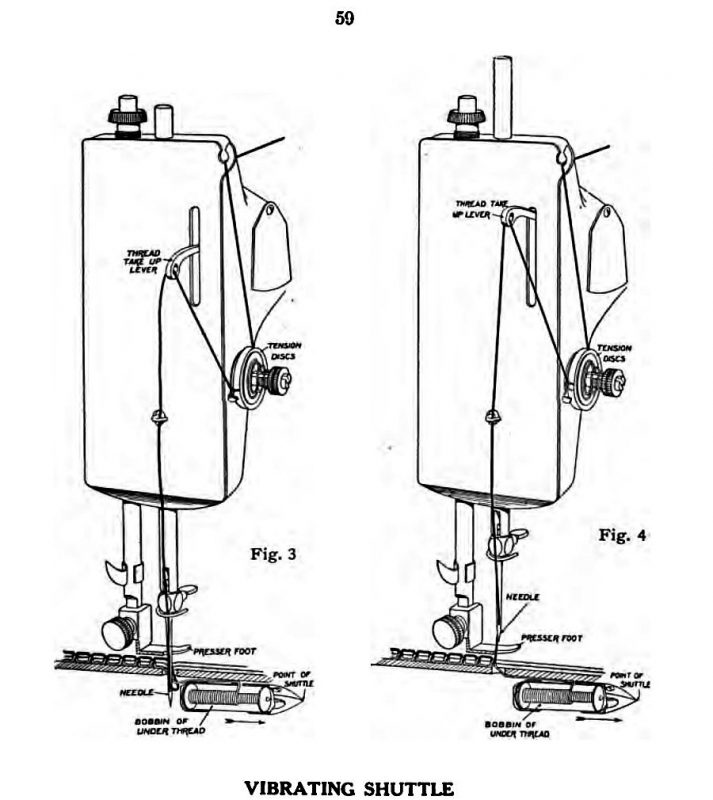

Fig. 3 shows the third stage. The shuttle has passed through the loop of needle thread, the shuttle thread has been enclosed by the needle thread, and the thread take-up lever is being raised to tighten the stitch.

Stitch Completed

Fig. 4 shows the stitch completed. The thread take-up lever has been raised to its highest point, drawing the needle thread, together with the shuttle thread, into the middle of the fabric, the two threads now being locked. The tension on the needle thread is regulated by the circular tension discs shown in the illustrations, and the tension on the under thread is regulated by a spring on the shuttle.
